CLACK CATALYTIC CARBON IRON FILTER

FEATURES AND BENEFITS

MADE IN THE USA

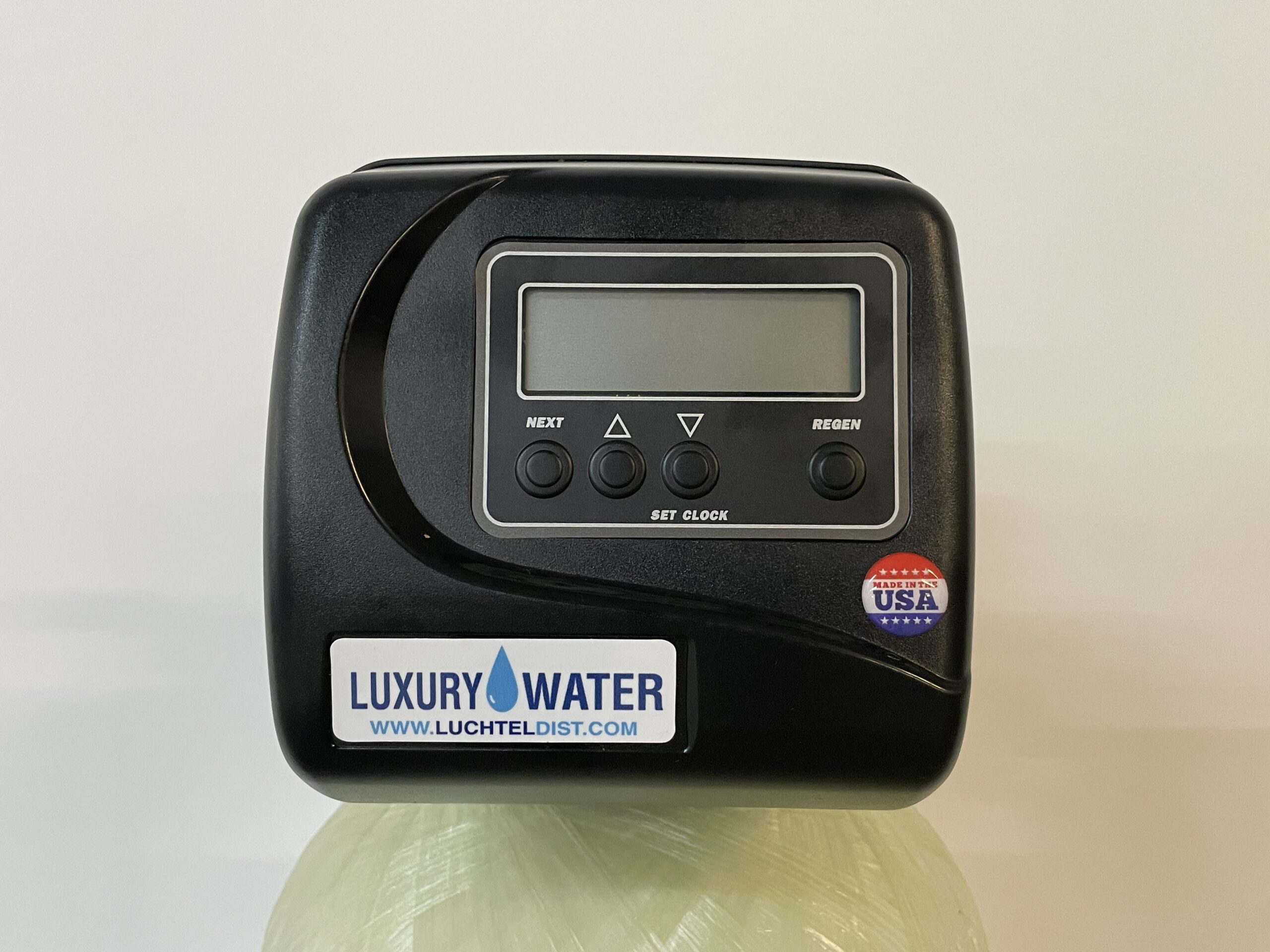

Solid state microprocessor with easy access front panel settings

Three modes of operation; meter immediate, meter delayed, or time clock delayed

Double backwash feature offers optimum regeneration, cleaning ability, and efficiency

Capable of 36 pre-programmed regeneration cycles based on control valve setting

Days override feature; 1 – 28 days available

Backwash and brining ability to 21” diameter tanks

Downflow/upflow regeneration

Stores system configuration and operation data in nonvolatile memory

Coin Cell Lithium battery back-up with an 8 hour carry over

Level VI 15-volt output DC power supply provides safe and easy installation

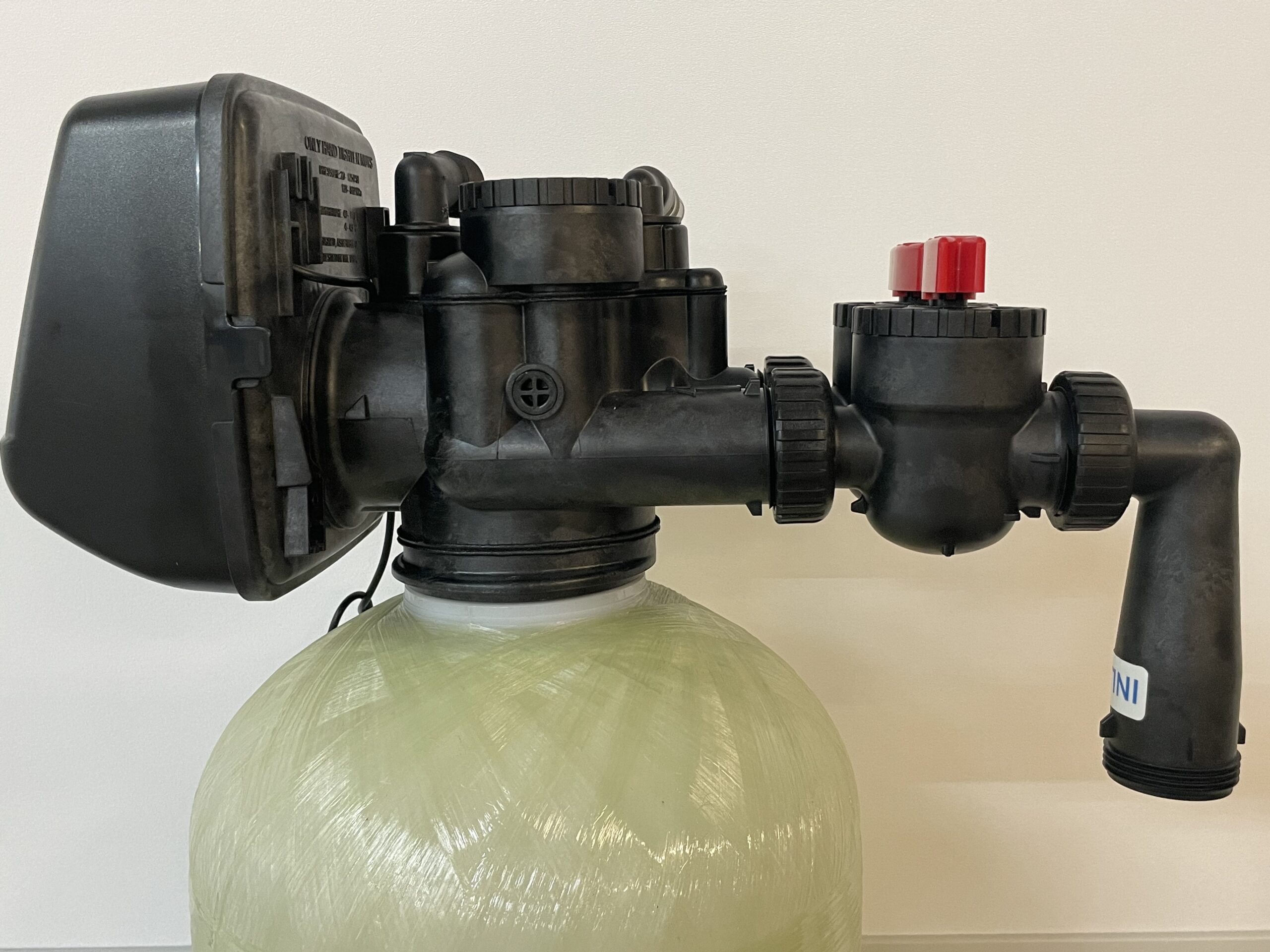

Control valve design provides optimum service and backwash rates

Reliable and proven DC drive

One piece expanding seal spacer stack assembly

Linearly reciprocating piston operation

SPECIFICATIONS

• GENERAL
  Inlet/Outlet Fitting Connections	1” – 1.25” NPT ¾” – 1.5” Sweat ¾” – 1.5” Solvent ¾” – 1” SharkBite® ¾” – 1” John Guest®
  Cycles	up to 6
  Valve Material	Fiber Reinforced Composite
  Regeneration	Downflow/Upflow
  Operating Pressures	20 – 125 psi
  Operating Temperatures	40° – 110° F
  Options	Backwash Filter, Bypass, Weather Cover



  FLOW RATES
  Service @15 psi drop includes meter and bypass	27 gpm
  Backwash @25 psi drop includes bypass	27 gpm
  Cv Service	7.0
  Cv Backwash	5.4



  TANK APPLICATIONS
  Water Softener	6” – 21” diameter
  Water Filter	6” – 21” diameter Filter tank size calculated @ 10 gpm of backwash per square foot of bed area



  METER
  Accuracy	± 5%
  Flow Rate Range	0.25 – 27 gpm
  Gallon Range	20 – 50,000 gallons
  Totalizer	1000 – 9,999,000 gallons



  DIMENSIONS & WEIGHT	1.050″ OD PIPE (¾” NPS)
  Drain Line	¾” or 1” NPT
  Brine Line	3/8” or ½” OD Poly Tube
  Mounting Base	2 1/2” – 8 NPSM
  Height From Top Of Tank	7 3/8”
  Weight	4.5 lbs.

Catalytic-High Activated Carbon (CAT-HAC)

Clack Catalytic Activated Carbon is a high activity coconut shell based granular carbon that is specifically designed for the reduction of chloramines and hydrogen sulfide from potable water.

Manufactured from select grades of coconut shell coal to produce a high density, durable granular product capable of withstanding the abrasion and dynamics associated with repeated hydraulic transport, backwashing and mechanical handling.

Activation is carefully controlled to produce exceptionally high internal surface area with optimum pore size for the adsorption of a broad range of low molecular weight organic contaminants and oxidizing agents like chlorine and ozone.

The catalytic activity of CAT-HAC makes it highly effective for the reduction of chloramines and hydrogen sulfide from potable water. Its large micropore volume also makes it particularly well suited for the removal of low molecular weight organic compounds and their chlorinated by-products such as chloroform and other trihalomethanes (THMs).

To obtain maximum efficiency of the activated carbon in the adsorption process, it is desirable to have the greatest possible surface area in the smallest practical volume. This is necessary because the rate of adsorption is proportional to the amount of surface area of the adsorbing media.

CAT-HAC has a surface area of 1,060 square meters per gram. This results in high efficiency and greater system economy.

CAT-HAC requires dissolved oxygen concentration of 4ppm (mg/L) to insure effective removal of iron and hydrogen sulfide.

CAT-HAC requires periodic backwashing to eliminate accumulated suspended matter and to re-grade the filter bed.

CAT-HAC has an extremely high capacity but must be replaced when the filter bed loses the capacity for reduction of chloramines and hydrogen sulfide.

CAT-HAC may be used in either domestic or industrial applications using gravity flow or pressurized filter vessels.

ADVANTAGES

• • CAT-HAC is an outstanding coconut shell based material for applications requiring chloramine, hydrogen sulfide and dissolved organic compound reduction. This product can be used for filtering water having a wide range of pH levels.
• • Large surface area results in an exceptionally high capacity and efficiency.
• • Balanced pore structure gives a more efficient adsorption range.
• • CAT-HAC is very durable so losses due to attrition are kept to a minimum.
• • CAT-HAC has a very high carbon, low ash content.
• • CAT-HAC will impart a high “polish” to the filtered water.
• PHYSICAL PROPERTIES
• • Color: Black
• • Mesh Size: 12 x 40
• • Bulk Density: 28 lbs./cu. ft.
• • Effective Size: 0.55-0.75 mm
• • Ash Content: Max 4%
• • Iodine Number: 1,000 mg/g
• • Moisture as packed: Max 5%
• • pH 10
• CERTIFICATIONS AND APPROVALS
• • NSF/ANSI Standard 61
• • AWWA B604-96
• • EN12915
• Empty Bed Contact
• Time in Minutes =
• BedVolume (ft3) x 7.481 gal/ft3
• Flowrate (gpm)
• CONDITIONS FOR OPERATION
• • Water to be filtered should preferably be free of oil and suspended matter
• • The water to be filtered should be relatively free of turbidity for
• maximum service life
• • Water pH range: wide range
• • Bed depth: 26-30 in.
• • Freeboard: 50% of bed depth (min.)
• • Empty bed contact time 3 minutes minimum
• • Dissolved Oxygen Concentration 4 ppm (mg/L)
• • Service flow rate: 5 gpm/sq. ft.
• • Backwash flow rate: 8-10 gpm/sq. ft.
• • Backwash bed expansion: 30-40% of bed depth
• • Upon installation, backwash to remove carbon fines before placing unit into service
